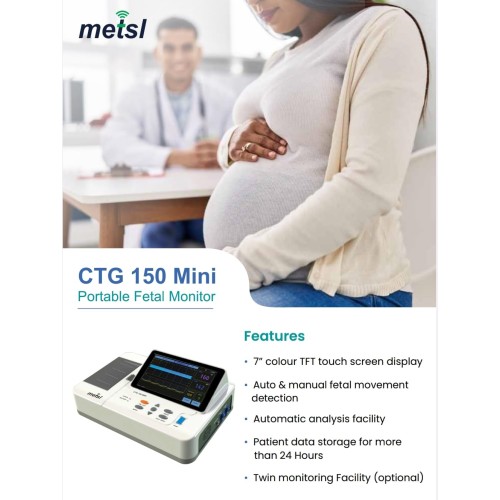

• 7-inch colour TFT touch screen display
• Auto and manual fetal movement detection
• Automatic analysis facility
• Patient data storage for more than 24 hours
• Twin monitoring facility (optional)

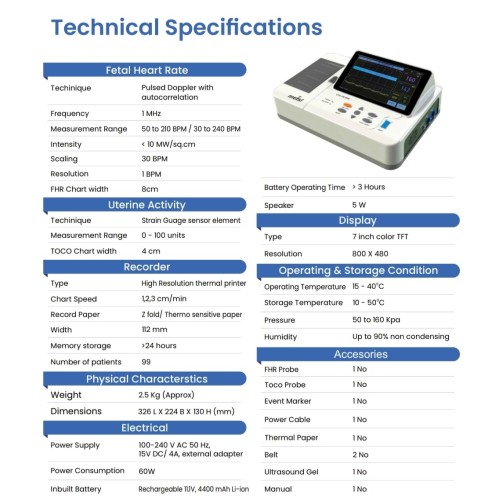

• FHR technique: pulsed Doppler with autocorrelation
• FHR frequency: 1 MHz
• FHR measurement range: 50–210 BPM / 30–240 BPM
• FHR intensity: <10 mW/sq.cm
• FHR scaling: 30 BPM
• FHR resolution: 1 BPM
• FHR chart width: 8 cm
• Uterine activity technique: strain gauge sensor element
• Uterine activity measurement range: 0–100 units
• TOCO chart width: 4 cm
• Recorder: high-resolution thermal printer
• Chart speed: 1, 2, 3 cm/min
• Record paper: Z-fold / thermo-sensitive paper
• Paper width: 112 mm
• Memory storage: >24 hours
• Number of patients: 99
• Weight: approx. 2.5 kg
• Dimensions: 326 (L) × 224 (B) × 130 (H) mm
• Power supply: 100–240 V AC 50 Hz; 15 V DC / 4 A external adapter
• Power consumption: 60 W
• Inbuilt battery: rechargeable 11.1 V, 4400 mAh Li-ion
• Battery operating time: >3 hours
• Speaker: 5 W
• Display: 7-inch colour TFT
• Display resolution: 800 × 480
• Operating temperature: 15–40°C
• Storage temperature: 10–50°C
• Pressure: 50–160 kPa
• Humidity: up to 90%, non-condensing

• FHR probe – 1 No
• TOCO probe – 1 No
• Event marker – 1 No
• Power cable – 1 No
• Thermal paper – 1 No
• Belts – 2 No
• Ultrasound gel – 1 No
• Manual – 1 No

Does CTG 150 Mini have a touch screen?
Yes. The catalogue specifies a 7-inch colour TFT touch screen with 800 × 480 resolution.

How much patient data can it store?
The catalogue specifies more than 24 hours of memory storage for up to 99 patients.

Is twin monitoring available?
Yes, twin monitoring is listed as an optional facility.

What is the battery backup?
The catalogue specifies a rechargeable 11.1 V, 4400 mAh Li-ion battery with operating time greater than 3 hours.

Before Ordering: Please confirm whether optional twin-monitoring capability or any additional accessories are required before ordering.

Note: Specifications are subject to change at any time without prior notice.
