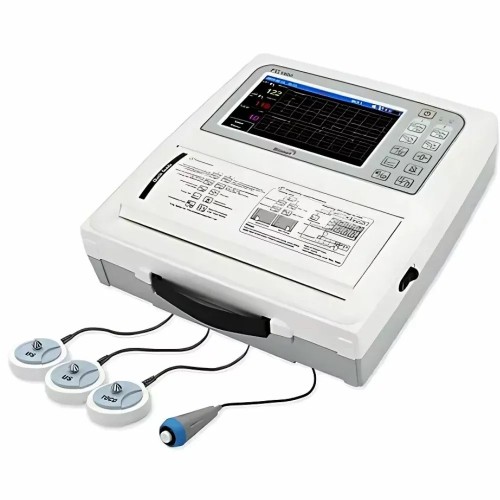

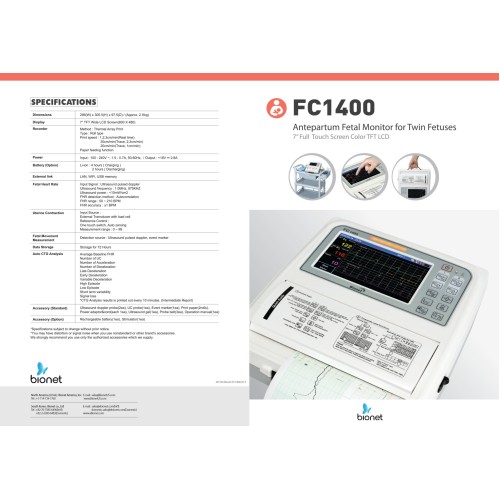

The Bionet FC1400 Fetal Monitor is an advanced antepartum fetal monitoring system designed for monitoring fetal heart rate, uterine contractions and fetal movement. It supports monitoring of twin fetuses and combines a large 7-inch full touch screen color TFT LCD with intuitive controls, automatic CTG analysis, an integrated thermal recorder and extensive data storage capabilities.

Designed for hospitals, maternity centres, obstetric departments, labour and delivery units and other professional healthcare environments, the FC1400 provides healthcare professionals with clear real-time fetal monitoring information and convenient recording capabilities.

The system uses ultrasound pulsed Doppler technology for fetal heart rate measurement and an external transducer with load cell for monitoring uterine contractions. Its FHR measurement range is 50–210 BPM, while uterine contraction measurements are displayed over a range of 0–99.

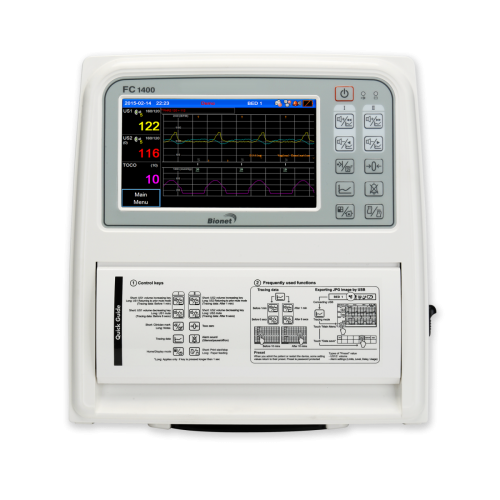

The Bionet FC1400 features a 7-inch TFT wide LCD with 800 × 480 resolution. Its touch-screen interface is designed to provide convenient access to fetal monitoring information and device functions.

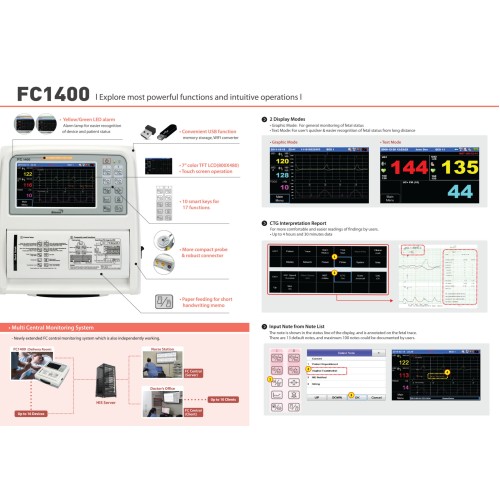

The monitor provides two useful viewing options. Graphic Mode is designed for general monitoring of fetal status, while Text Mode presents large numerical information that can be recognised more easily from a distance.

The FC1400 is designed for fetal monitoring including twin fetuses. Fetal heart rate is detected using ultrasound pulsed Doppler technology with autocorrelation processing.

The fetal heart rate measurement range is 50–210 BPM. The system uses 1.0 MHz / 975 kHz ultrasound frequency according to the supplied product catalogue.

Uterine contractions are monitored using an external transducer with load cell. The FC1400 provides one-touch reference control with automatic zeroing and a uterine contraction measurement range of 0–99.

Fetal movement can be detected through the ultrasound pulsed Doppler system and recorded using the event marker. This allows fetal movement information to be viewed together with fetal heart rate and uterine contraction information during monitoring.

The Bionet FC1400 incorporates automatic CTG analysis functions to assist healthcare professionals in reviewing fetal monitoring information.

The CTG analysis includes:

• Average baseline fetal heart rate
• Number of uterine contractions (UC)
• Number of accelerations
• Number of decelerations
• Late deceleration
• Early deceleration
• Variable deceleration
• High episode
• Low episode
• Short-term variability
• Signal loss

CTG analysis results can be printed periodically as an intermediate report.

The FC1400 includes an integrated thermal array printer using roll-type recording paper. This enables fetal monitoring traces and related information to be recorded directly from the machine.

Real-time printing speeds of 1, 2 and 3 cm/min are supported, together with high-speed trace printing and a paper feeding function.

The monitor provides storage capacity for up to 72 hours of monitoring data, allowing previous fetal monitoring information to be retained for subsequent review.

The FC1400 supports LAN, Wi-Fi and USB memory connectivity. The system can also be integrated with the Bionet FC Central monitoring environment for centralized fetal monitoring.

According to the manufacturer catalogue, the central monitoring system can support monitoring of up to 16 devices, providing a useful solution for hospitals and maternity departments managing multiple fetal monitoring stations.

• Ultrasound Doppler Probe – 2 pcs
• UC Probe – 1 pc
• Event Marker – 1 pc
• Print Paper – 2 rolls
• Power Adapter – 1 pc
• Power Cord – 1 pc
• Ultrasound Gel – 1 pc
• Probe Belt – 3 pcs
• Operation Manual – 1 pc

• Rechargeable Battery – 1 pc
• Stimulator – 1 pc

What is the Bionet FC1400?
The Bionet FC1400 is a professional fetal monitor designed to monitor fetal heart rate, uterine contractions and fetal movement, including support for twin fetal monitoring.

Can the Bionet FC1400 monitor twins?
Yes. The FC1400 is designed to support monitoring of twin fetuses using two ultrasound Doppler probes.

What is the fetal heart rate range of the FC1400?
The specified fetal heart rate measurement range is 50–210 BPM.

Does the Bionet FC1400 have a touch screen?
Yes. It features a 7-inch TFT wide color LCD with full touch-screen operation and 800 × 480 resolution.

Does the FC1400 provide CTG analysis?
Yes. The monitor provides automatic CTG analysis covering parameters including baseline FHR, uterine contractions, accelerations and different types of decelerations.

Does the Bionet FC1400 have a built-in printer?
Yes. It incorporates a roll-type thermal array recorder with real-time printing speeds of 1, 2 and 3 cm/min.

How much monitoring data can the FC1400 store?
The monitor can store up to 72 hours of data.

What connectivity options are available?
The FC1400 supports LAN, Wi-Fi and USB memory connectivity.

Is a battery available for the Bionet FC1400?
Yes. A rechargeable Li-ion battery is available as an optional accessory. The supplied catalogue specifies approximately 4 hours charging time and approximately 2 hours operating time.

Where can the Bionet FC1400 be used?
The FC1400 is intended for professional fetal monitoring environments such as hospitals, maternity centres, obstetric departments and other appropriately equipped healthcare facilities.

Note: Specifications are subject to change at any time without prior notice.
