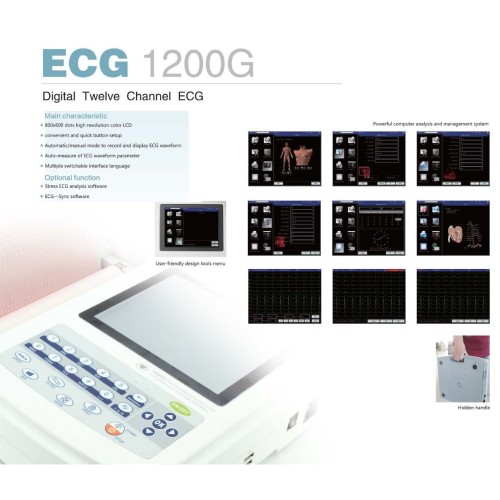

Contec ECG1200G 12 Channel ECG Machine

Digital Twelve Channel Electrocardiograph with Color Touch Screen

CONTEC ECG1200G is a digital 12-channel electrocardiograph designed for simultaneous 12-lead ECG acquisition, waveform display, thermal printing, automatic measurement and ECG data management.

Key Features

Simultaneous collection of 12-lead ECG signals
High-resolution 800 × 600 color LCD with touch-screen and button operation
3/6/12-lead ECG waveform display with print mode, sensitivity, paper speed and filter status
Automatic, rhythm and manual recording modes with multiple printing formats
Automatic measurement and analysis of routine ECG parameters
Built-in large-capacity memory for case review and statistics
Multi-language interface and reports
Trend chart and histogram of P-R interval printing
Optional ECG analysis software and ECG-Sync software

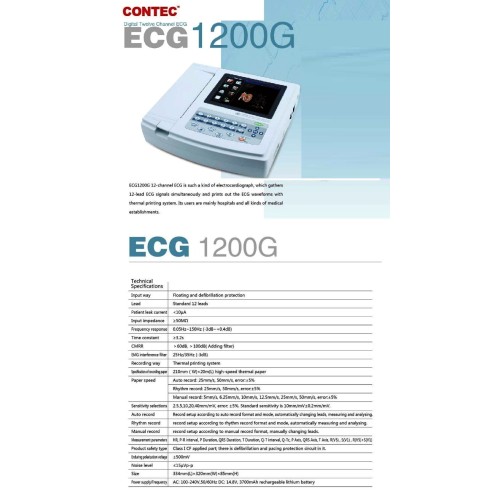

Technical Specifications

Input Way	Floating and defibrillation protection
Lead	Standard 12 leads
Patient Leak Current	<10 μA
Input Impedance	>50 MΩ
Frequency Response	0.05 Hz–150 Hz (-3 dB–+0.4 dB)
Time Constant	≥3.2 s
CMRR	>60 dB; >100 dB (adding filter)
EMG Interference Filter	25 Hz / 35 Hz (-3 dB)
Recording Way	Thermal printing system
Specified Recording Paper	210 mm (W) × 20 m (L) high-speed thermal paper
Paper Speed	Auto record: 25 mm/s, 50 mm/s, error ±5%; Rhythm record: 25 mm/s, 50 mm/s, error ±5%; Manual record: 5, 6.25, 10, 12.5, 25, 50 mm/s, error ±5%
Sensitivity Selections	2.5, 5, 10, 20, 40 mm/mV, error ±5%; standard sensitivity 10 mm/mV ±0.2 mm/mV
Auto Record	Record setup according to auto record format and mode, automatically changing leads, measuring and analysing
Rhythm Record	Record setup according to rhythm record format and mode, automatically measuring and analysing
Manual Record	Record setup according to manual record format, manually changing leads
Measurement Parameters	HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Product Safety Type	Class I CF applied part; defibrillation and pacing protection circuit
Sampling Precision	≤500 mV
Noise Level	≤15 μVp-p
Size	334 mm (L) × 320 mm (W) × 85 mm (H)
Power Supply/Frequency	AC 100–240 V, 50/60 Hz; DC 14.8 V, 3700 mAh rechargeable lithium battery
Net Weight	3.2 kg

Options

ECG analysis software
ECG-Sync software

FAQs

Is the CONTEC ECG1200G a 12-channel ECG machine?
Yes. The supplied CONTEC catalogue identifies ECG1200G as a digital twelve-channel electrocardiograph with simultaneous 12-lead ECG signal acquisition.

What recording modes are available in ECG1200G?
The catalogue specifies Auto Record, Rhythm Record and Manual Record modes, with multiple paper speeds and recording formats.

What ECG paper is specified for the ECG1200G?
The catalogue specifies 210 mm (W) × 20 m (L) high-speed thermal recording paper.

Does ECG1200G provide automatic ECG measurement and analysis?
Yes. The catalogue states that it can automatically measure and analyse routine ECG parameters including heart rate, intervals, durations and electrical axes.

Does the ECG1200G have a rechargeable battery?
Yes. The catalogue specifies a DC 14.8 V, 3700 mAh rechargeable lithium battery in addition to AC 100–240 V, 50/60 Hz power.

Can’t Find Your Required Model or Accessory?

If you cannot find the exact product, model, accessory or anything you need on IndiaMediCart.com, contact us on WhatsApp. Our team will help you search for the required product.

Before Ordering

Please confirm the exact model, required configuration, included accessories, battery requirement and ECG paper format before ordering. Optional items should be confirmed separately.

Note: Specifications are subject to change at any time without prior notice.
