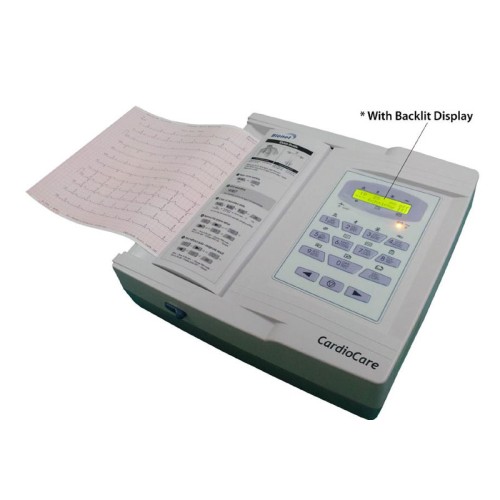

Bionet CardioCare 2000 12 Channel ECG Machine

Interpretive 12 Channel Resting ECG

Bionet CardioCare 2000 is an interpretive 12-channel resting ECG machine designed for accurate simultaneous 12-channel cardiac data acquisition with A4-size print-outs and advanced ECG interpretation.

Key Features

Convenient A4-size print-outs allow for easy chart filing
Copy function allows varied printouts from a single patient sample
Grid function allows use of low-cost plain fax paper
One-touch operation (monitoring, recording mode)
Accurate simultaneous 12-channel cardiac data acquisition
Over 120 kinds of interpretation results based on advanced Minnesota code
High-quality 12-channel interpretive ECG
Free software upgrade via USB

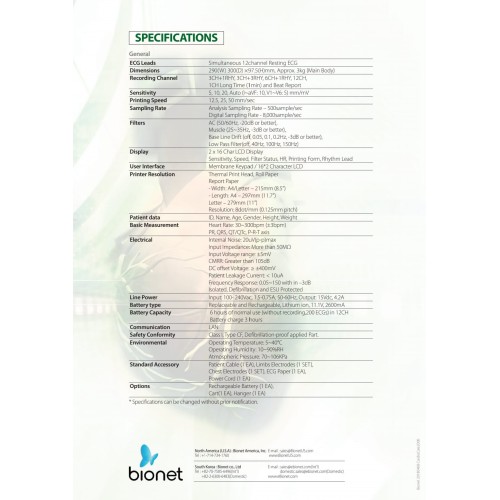

Technical Specifications

ECG Leads	Simultaneous 12-channel Resting ECG
Dimensions	290(W) × 300(D) × 97.5(H) mm, Approx. 3 kg (Main Body)
Recording Channel	3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 1CH Long Time (1 min) and Beat Report
Sensitivity	5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV
Printing Speed	12.5, 25, 50 mm/sec
Sampling Rate	Analysis Sampling Rate – 500 sample/sec; Digital Sampling Rate – 8,000 sample/sec
Filters	AC (50/60Hz, -20dB or better); Muscle (25~35Hz, -3dB or better); Base Line Drift (off, 0.05, 0.1, 0.2Hz, -3dB or better); Low Pass Filter (off, 40Hz, 100Hz, 150Hz)
Display	2 × 16 Char LCD Display; Sensitivity, Speed, Filter Status, HR, Printing Form, Rhythm Lead
User Interface	Membrane Keypad / 16×2 Character LCD
Printer Resolution	Thermal Print Head, Roll Paper
Report Paper	Width: A4/Letter – 215mm (8.5”); Length: A4 – 297mm (11.7”), Letter – 279mm (11”); Resolution: 8 dot/mm (0.125mm pitch)
Patient Data	ID, Name, Age, Gender, Height, Weight
Basic Measurement	Heart Rate: 30~300 bpm (±3 bpm); PR, QRS, QT/QTc, P-R-T axis
Internal Noise	20uV(p-p) max
Input Impedance	More than 50MΩ
Input Voltage Range	±5mV
CMRR	Greater than 105dB
DC Offset Voltage	≥ ±400mV
Patient Leakage Current	< 10uA
Frequency Response	0.05~150 within -3dB
Protection	Isolated, Defibrillation and ESU Protected
Line Power	Input: 100–240Vac, 1.5–0.75A, 50–60Hz; Output: 15Vdc, 4.2A
Battery Type	Replaceable and Rechargeable, Lithium ion, 11.1V, 2600mA
Battery Capacity	6 hours of normal use (without recording, 200 ECGs) in 12CH; Battery charge 3 hours
Communication	LAN
Safety Conformity	Class I, Type CF, Defibrillation-proof applied Part
Environmental	Operating Temperature: 5~40°C; Operating Humidity: 10~90%RH; Atmospheric Pressure: 70~106KPa

Standard Accessories

Patient Cable (1 EA)
Limb Electrodes (1 SET)
Chest Electrodes (1 SET)
ECG Paper (1 EA)
Power Cord (1 EA)

Options

Rechargeable Battery (1 EA)
Cart (1 EA)
Hanger (1 EA)

Can’t Find Your Required Model or Accessory?

If you cannot find the exact product, model, accessory or anything you need on IndiaMediCart.com, contact us on WhatsApp. Our team will help you search for the required product.

Before Ordering

Please confirm the exact model, required configuration, included accessories, battery requirement and ECG paper format before ordering. Optional items should be confirmed separately.

Note: Specifications are subject to change at any time without prior notice.
